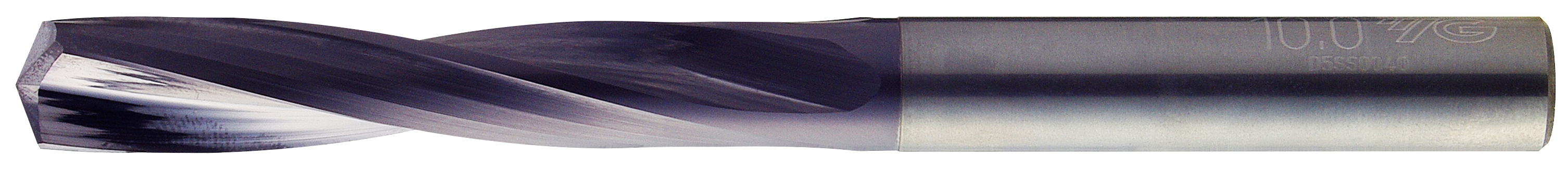

YG-1 DH500056 5.60mm Carbide Dream Drill For High HardENED MATERIAL (HRc50 ~ HRc70) TIALN Coated

Part Number: YG1DH500056

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1148631
$41.22
YG-1 DH500056 Carbide Drill 5.60MM CARBIDE DREAM DRILL FOR HIGH HARDENED MATERIAL (HRc50 ~ HRc70) TIALN COATED Solid TiAlN Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating >50HRC Steel
Coating TiAlN
Mach Side Connection Size 0.2362 6.00MM
Overall Length 2.9528 75.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 2
Tool Dia 0.2205 5.60MM
Type Of Tool Drill
Included Angle 140°
Flute Length 1.3780 35.00MM
Cut Dia Min 0.2205 5.60MM
Dia Deep 6.0x Dia
