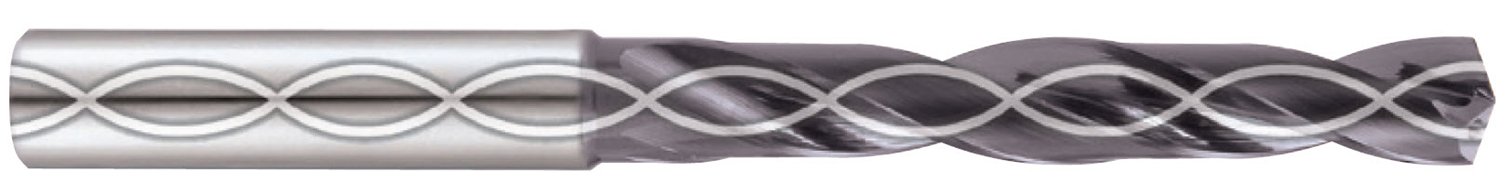

YG-1 DH463038 19/32 Carbide Dream Drill Inox W/ Coolant (3XD)

Part Number: YG1DH463038

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1147260
$271.81
YG-1 DH463038 Carbide Drill 19/32 CARBIDE DREAM DRILL INOX W/ COOLANT (3XD) Coolant Thru TiAlN Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <25HRC Steel, Stainless Steel
Coating TiAlN
Mach Side Connection Size 0.6250 15.88MM
Overall Length 5.7090 145.01MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 2
Tool Dia 0.5938 15.08MM - 19/32
Type Of Tool Drill
Included Angle 140°
Flute Length 3.0510 77.50MM
Cut Dia Min 0.5938 15.08MM - 19/32
Dia Deep 3.0x Dia
