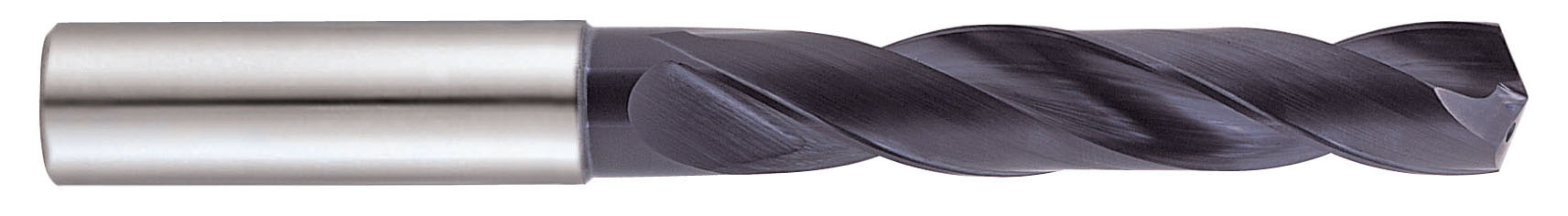

YG-1 DH424166 16.60mm Carbide Dream Drill (5XD) - Metric

Part Number: YG1DH424166

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1148553
$207.69
YG-1 DH424166 Carbide Drill 16.60MM CARBIDE DREAM DRILL (5XD) - METRIC Solid TiAlN Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Gray Iron, <40HRC Steel, Ductile Iron
Coating TiAlN
Mach Side Connection Size 0.7087 18.00MM
Overall Length 5.6299 143.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.7087 18.00MM
Flutes/Inserts 2
Tool Dia 0.6535 16.60MM
Type Of Tool Drill
Included Angle 140°
Flute Length 3.6610 92.99MM
Cut Dia Min 0.6535 16.60MM
Dia Deep 5.0x Dia
