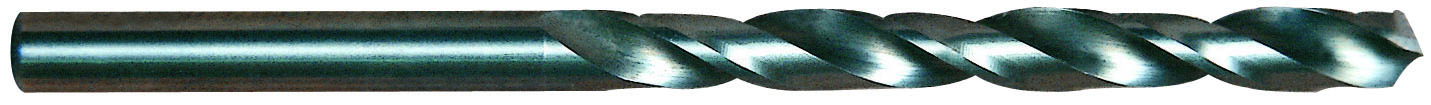

YG-1 DH417029 29/64 Carbide Jobber Length Twist Drill TIALN Coated

Part Number: YG1DH417029

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1148155
$81.40
YG-1 DH417029 Carbide Drill 29/64 CARBIDE JOBBER LENGTH TWIST DRILL TIALN COATED Solid TiAlN Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Gray Iron, Aluminum, <30HRC Steel
Coating TiAlN
Mach Side Connection Size 0.4531 11.51MM
Overall Length 4.7500 120.65MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4531 11.51MM - 29/64
Flutes/Inserts 2
Tool Dia 0.4531 11.51MM - 29/64
Type Of Tool Drill
Included Angle 118°
Flute Length 3.0000 76.20MM
Cut Dia Min 0.4531 11.51MM - 29/64
Drill Length Type Jobber
