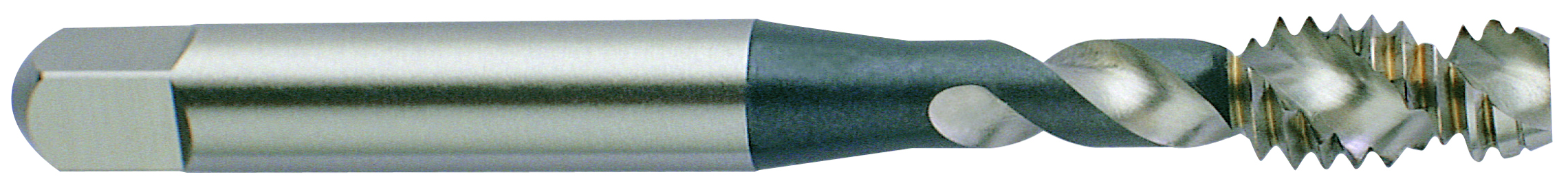

Picture of YG-1 D8764 7/8-14.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 Hardslick

YG-1 D8764 7/8-14.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 Hardslick

Part Number: YG-D8764

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1161586
Vendor: Sussex Tool and Supply
$240.44
YG-1 D8764 7/8"x14.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 Hardslick H4/GH4 NF/UNF/UNEF Steel Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-V3
Machine Side Connection Type Tap Collet
Cut Rating Graphite, Aluminum, Brass, Plastic
Coating Hardslick
Overall Length 4.6870 119.05MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6970 17.70MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 14.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size 7/8"
Thread Limit H4/GH4
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 0.8008 20.34MM - 0.8193 20.81MM
Tap Square 0.5230
Tap Chamfer 2.0P-3.0P
