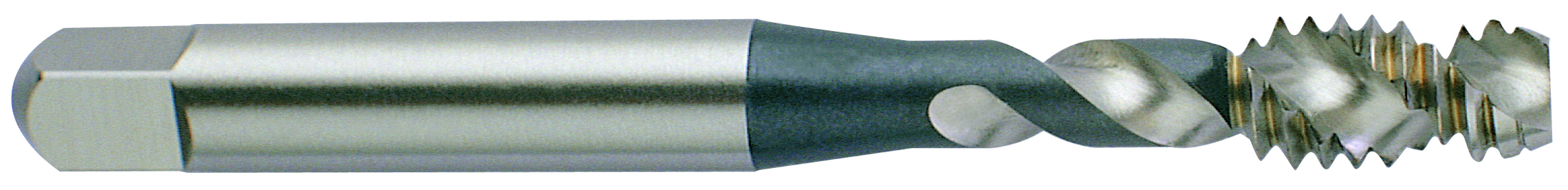

Picture of YG-1 D8643 5/8-11.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 Hardslick

YG-1 D8643 5/8-11.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 Hardslick

Part Number: YG-D8643

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1161581
Vendor: Sussex Tool and Supply
$95.10
YG-1 D8643 5/8"x11.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 Hardslick H3/GH3 NC/UNC Steel Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-V3
Machine Side Connection Type Tap Collet
Cut Rating Graphite, Aluminum, Brass, Plastic
Coating Hardslick
Overall Length 3.8120 96.82MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4800 12.19MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 11.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size 5/8"
Thread Limit H3/GH3
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 0.5303 13.47MM - 0.5539 14.07MM
Tap Square 0.3600
Tap Chamfer 2.0P-3.0P
