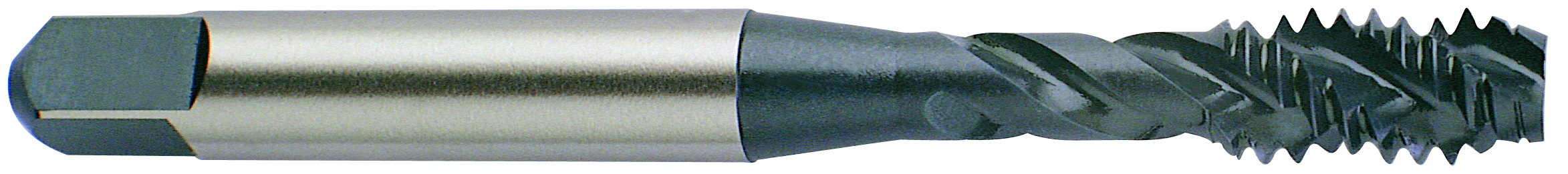

Picture of YG-1 D3467 5/16-24.00TPI Over Sized Mod Bottom Mod Bottom 2.0P-3.0P HSSE-V3 Steam Oxide

YG-1 D3467 5/16-24.00TPI Over Sized Mod Bottom Mod Bottom 2.0P-3.0P HSSE-V3 Steam Oxide

Part Number: YG-D3467
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1161424
Vendor: Sussex Tool and Supply
$20.21

Description

YG-1 D3467 5/16"x24.00TPI Over Sized Mod Bottom Mod Bottom 2.0P-3.0P HSSE-V3 Steam Oxide GH7 +0.0035 NF/UNF/UNEF Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Tap Style Over Sized Mod Bottom
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 2.7200 69.09MM
Shank/Pilot Dia 0.3180 8.08MM
Flutes/Inserts 3
Thread Pitch 24.00TPI
Thread Size 5/16"
Tap Drill Range 0.2689 6.83MM - 0.2799 7.11MM
Tap Square 0.2380
Performance & Capacity
Cut Rating <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit GH7 +0.0035
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-V3
Coating Steam Oxide
Standards & Identification
Dimension Standard ANSI/ANSI
