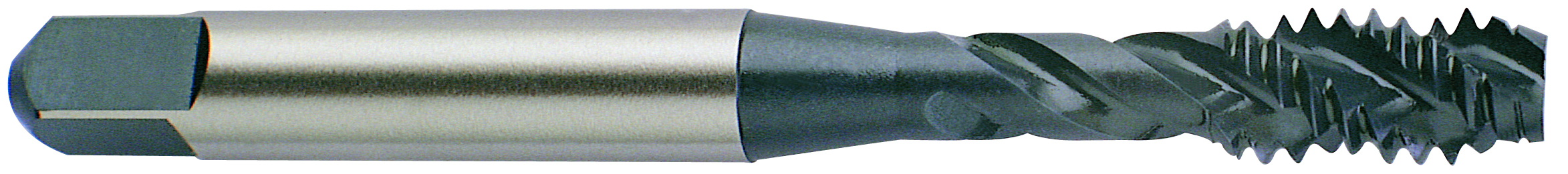

Picture of YG-1 D2327 No.10-24.00TPI Over Sized Mod Bottom Mod Bottom 2.0P-3.0P HSSE-V3 Hardslick

YG-1 D2327 No.10-24.00TPI Over Sized Mod Bottom Mod Bottom 2.0P-3.0P HSSE-V3 Hardslick

Part Number: YG-D2327
Looking for alternatives…
Find a drill for this tap No.10 × 24.00TPI
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1161307
Vendor: Sussex Tool and Supply
$21.13

Description

YG-1 D2327 No.10x24.00TPI Over Sized Mod Bottom Mod Bottom 2.0P-3.0P HSSE-V3 Hardslick GH7 +0.0035 NC/UNC Steel Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style Over Sized Mod Bottom
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 2.3750 60.33MM
Shank/Pilot Dia 0.1940 4.93MM
Flutes/Inserts 3
Thread Pitch 24.00TPI
Thread Size No.10
Tap Drill Range 0.1465 3.72MM - 0.1575 4.00MM
Tap Square 0.1520
Performance & Capacity
Cut Rating <30HRC Steel, Stainless Steel
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit GH7 +0.0035
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-V3
Coating Hardslick
Standards & Identification
Dimension Standard ANSI/ANSI
