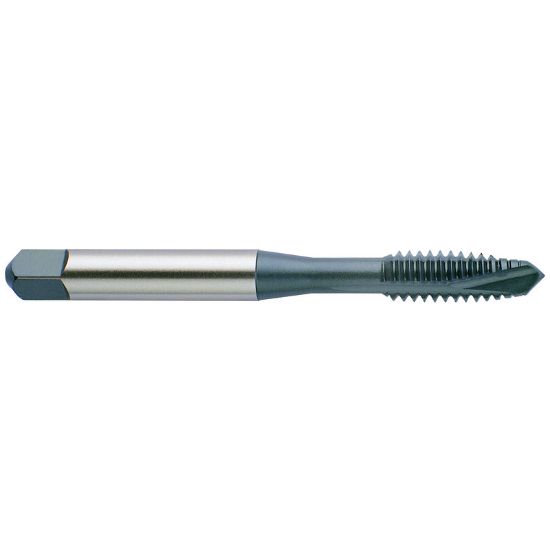

Picture of YG-1 D0543 7/16-20.00TPI Cut Spiral Point Plug 4P-5P P-HSS TiN

YG-1 D0543 7/16-20.00TPI Cut Spiral Point Plug 4P-5P P-HSS TiN

Part Number: YG-D0543

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1161280
Vendor: Sussex Tool and Supply
$66.54
YG-1 D0543 7/16"x20.00TPI Cut Spiral Point Plug 4P-5P P-HSS TiN H3/GH3 NF/UNF/UNEF Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat P-HSS
Machine Side Connection Type Tap Collet
Cut Rating High Temp, Inconel, Titanium
Coating TIN
Overall Length 3.1560 80.16MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3230 8.20MM - P
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 20.00TPI
Thread Type NF/UNF/UNEF
Thread Size 7/16"
Thread Limit H3/GH3
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.3854 9.79MM - 0.3984 10.12MM
Tap Square 0.2420
Tap Chamfer 4P-5P
