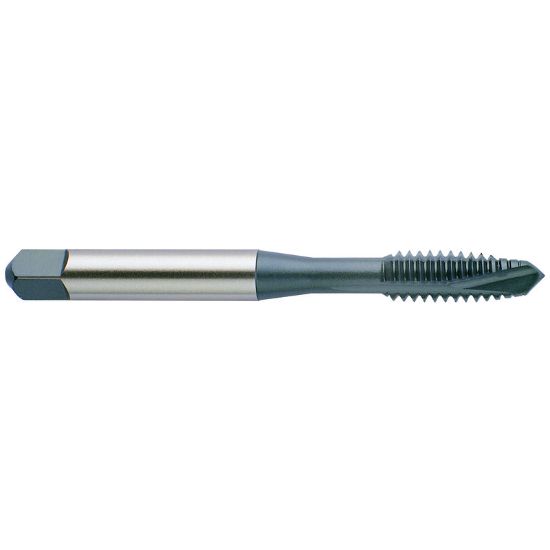

Picture of YG-1 C8443 5/16-18.00TPI Cut Spiral Point Plug 4P-5P P-HSS Steam Oxide

YG-1 C8443 5/16-18.00TPI Cut Spiral Point Plug 4P-5P P-HSS Steam Oxide

Part Number: YG-C8443

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1161244
Vendor: Sussex Tool and Supply
$41.45
YG-1 C8443 5/16"x18.00TPI Cut Spiral Point Plug 4P-5P P-HSS Steam Oxide H3/GH3 NC/UNC Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat P-HSS
Machine Side Connection Type Tap Collet
Cut Rating High Temp, Inconel, Titanium
Coating Steam Oxide
Overall Length 2.7200 69.09MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3180 8.08MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 18.00TPI
Thread Type NC/UNC
Thread Size 5/16"
Thread Limit H3/GH3
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.2547 6.47MM - 0.2689 6.83MM
Tap Square 0.2380
Tap Chamfer 4P-5P
