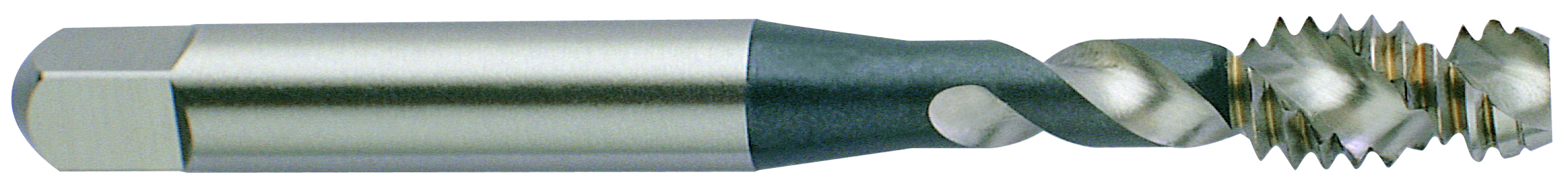

Picture of YG-1 C0784 1-8.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 Uncoated

YG-1 C0784 1-8.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 Uncoated

Part Number: YG-C0784
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$155.50
SKU: 1161133

Description

YG-1 C0784 1"x8.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 Uncoated H4/GH4 NC/UNC Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 5.1250 130.18MM
Shank/Pilot Dia 0.8000 20.32MM
Flutes/Inserts 3
Thread Pitch 8.00TPI
Thread Size 1"
Tap Drill Range 0.8701 22.10MM - 0.9024 22.92MM
Tap Square 0.6000
Performance & Capacity
Cut Rating Graphite, Aluminum, Brass, Plastic
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit H4/GH4
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-V3
Standards & Identification
Dimension Standard ANSI/ANSI
