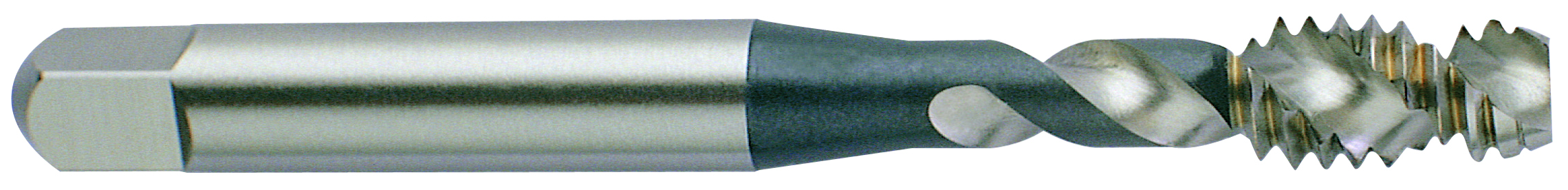

Picture of YG-1 C0764 7/8-14.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 Uncoated

YG-1 C0764 7/8-14.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 Uncoated

Part Number: YG-C0764
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$155.50
SKU: 1161132

Description

YG-1 C0764 7/8"x14.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 Uncoated H4/GH4 NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 4.6870 119.05MM
Shank/Pilot Dia 0.6970 17.70MM
Flutes/Inserts 3
Thread Pitch 14.00TPI
Thread Size 7/8"
Tap Drill Range 0.8008 20.34MM - 0.8193 20.81MM
Tap Square 0.5230
Performance & Capacity
Cut Rating Graphite, Aluminum, Brass, Plastic
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit H4/GH4
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-V3
Standards & Identification
Dimension Standard ANSI/ANSI
