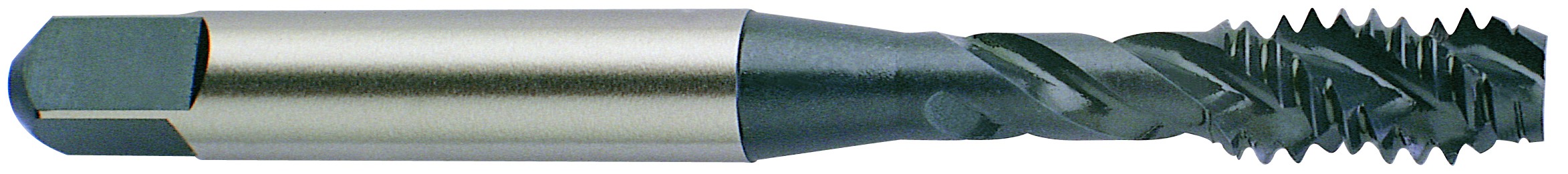

Picture of YG-1 BV28A M5-0.80mm Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 Hardslick

YG-1 BV28A M5-0.80mm Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 Hardslick

Part Number: YG-BV28A
Looking for alternatives…
Find a drill for this tap M5 × 0.80MM
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1161049
Vendor: Sussex Tool and Supply
$20.56

Description

YG-1 BV28A M5x0.80MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 Hardslick D11 Metric Steel Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 2.3750 60.33MM
Shank/Pilot Dia 0.1940 4.93MM
Flutes/Inserts 3
Thread Pitch 0.80MM
Thread Size M5
Tap Drill Range 0.1642 4.17MM - 0.1724 4.38MM
Tap Square 0.1520
Performance & Capacity
Cut Rating <40HRC Steel
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit D11
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-V3
Coating Hardslick
Standards & Identification
Dimension Standard ANSI/ANSI
