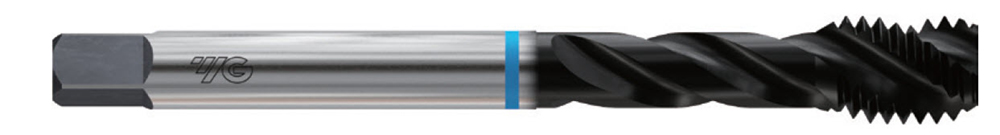

Picture of YG-1 BO426 M10-1.50mm Cut Spiral Flute Mod Bottom 2.0P-3.0P Super HSS Hardslick

YG-1 BO426 M10-1.50mm Cut Spiral Flute Mod Bottom 2.0P-3.0P Super HSS Hardslick

Part Number: YG-BO426
Looking for alternatives…
Find a drill for this tap M10 × 1.50MM
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1160960
Vendor: Sussex Tool and Supply
$56.41

Description

YG-1 BO426 M10x1.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P Super HSS Hardslick D6 Metric Steel Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 3.9370 100.00MM
Shank/Pilot Dia 0.3810 9.68MM
Flutes/Inserts 3
Thread Pitch 1.50MM
Thread Size M10
Tap Drill Range 0.3323 8.44MM - 0.3476 8.83MM
Tap Square 0.2860
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit D6
Materials & Finish
Tool Material Steel
Cutting Edge Mat Super HSS
Coating Hardslick
Standards & Identification
Dimension Standard DINSI
