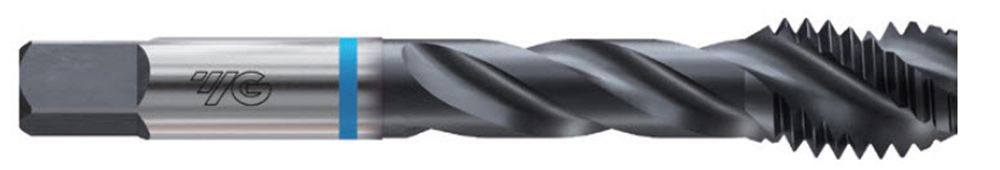

Picture of YG-1 BI325 No.10-24.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P Super HSS Hardslick

YG-1 BI325 No.10-24.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P Super HSS Hardslick

Part Number: YG-BI325
Tool Cross-Reference
Looking for alternatives…
Find a drill for this tap 0 drills
No.10 × 24.00TPI Cut
% of thread 75%
Target drill —
Drill products available across the % thread range
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band).

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1160851
Vendor: Sussex Tool and Supply
$28.29

Description

YG-1 BI325 No.10x24.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P Super HSS Hardslick H5/GH5 NC/UNC Steel Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 2.3750 60.33MM
Shank/Pilot Dia 0.1940 4.93MM
Flutes/Inserts 3
Thread Pitch 24.00TPI
Thread Size No.10
Tap Drill Range 0.1465 3.72MM - 0.1575 4.00MM
Tap Square 0.1520
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit H5/GH5
Materials & Finish
Tool Material Steel
Cutting Edge Mat Super HSS
Coating Hardslick
Standards & Identification
Dimension Standard ANSI/ANSI
