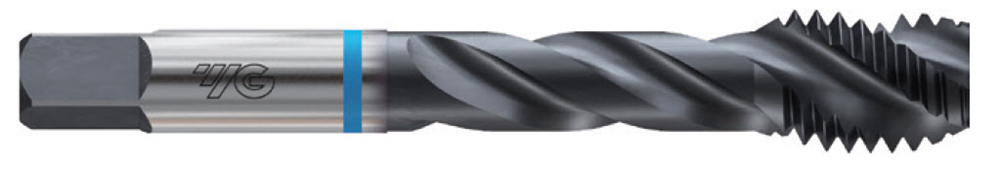

Picture of YG-1 BH224 M3.5-0.60mm Cut Spiral Flute Mod Bottom 2.0P-3.0P Super HSS Steam Oxide

YG-1 BH224 M3.5-0.60mm Cut Spiral Flute Mod Bottom 2.0P-3.0P Super HSS Steam Oxide

Part Number: YG-BH224
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1160820
Vendor: Sussex Tool and Supply
$19.49

Description

YG-1 BH224 M3.5x0.60MM Cut Spiral Flute Mod Bottom 2.0P-3.0P Super HSS Steam Oxide D4 Metric Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat Super HSS
Cut Rating Stainless Steel, <40HRC Steel
Coating Steam Oxide
Overall Length 2.0000 50.80MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 0.60MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M3.5
Thread Limit D4
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1134 2.88MM - 0.1193 3.03MM
Tap Square 0.1100
Tap Chamfer 2.0P-3.0P
