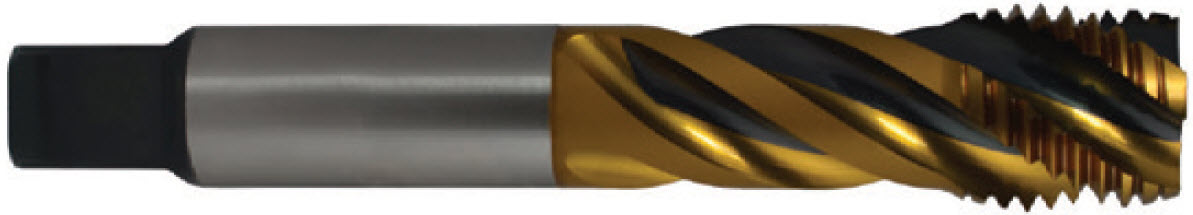

Picture of YG-1 BGD42GB 2-8.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSS-EX Gold-Black

YG-1 BGD42GB 2-8.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSS-EX Gold-Black

Part Number: YG-BGD42GB

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1160817
Vendor: Sussex Tool and Supply
$1,360.21
The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.
Products specifications
Attribute name Attribute value
Tap Drill Range 1.8701 47.50MM - 1.9024 48.32MM
Dimension Standard DINSI
Shank Or Pilot Diameter 1.6440 41.76MM
Thread Limit 2B
Cutter Type Taping
Tap Square 1.2330
Length Type STANDARD
Performance Rating High Performance
Tap Style Cut Spiral Flute
Overall Length 8.8580 224.99MM
Machine Side (Toolpost) TAP1.233x1.644
Cutting Edge Definition The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, it is still wear-resistant and has a high hot hardness., but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however
Type of Tool Tap
Machine Side (Toolpost) Connection Type Tap Collet
Flutes Or Inserts 6
Shipping State ILLINOIS
Family Group Oil Field Tap
Cutting Edge Material HSSE-X
Tool Material Steel
Coating Gold/Black
Coolant Thru Non Coolant
Tap Type Mod Bottom
Flute Direction Right
Thread Type NC/UNC
Made In USA No
Thread Size 2"
Thread Pitch 8.00TPI
Tap Chamfer 2.0P-3.0P
