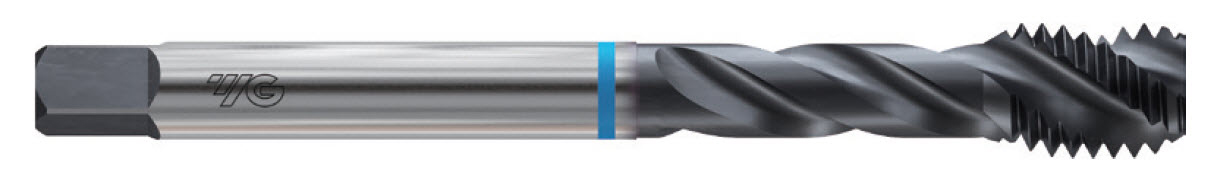

Picture of YG-1 BF082 No.2-56.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P Super HSS Steam Oxide

YG-1 BF082 No.2-56.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P Super HSS Steam Oxide

Part Number: YG-BF082
Looking for alternatives…
Find a drill for this tap No.2 × 56.00TPI
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1160756
Vendor: Sussex Tool and Supply
$59.81

Description

YG-1 BF082 No.2x56.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P Super HSS Steam Oxide H3/GH3 NC/UNC Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 1.7720 45.01MM
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 2
Thread Pitch 56.00TPI
Thread Size No.2
Tap Drill Range 0.0673 1.71MM - 0.0720 1.83MM
Tap Square 0.1100
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit H3/GH3
Materials & Finish
Tool Material Steel
Cutting Edge Mat Super HSS
Coating Steam Oxide
Standards & Identification
Dimension Standard DINSI
