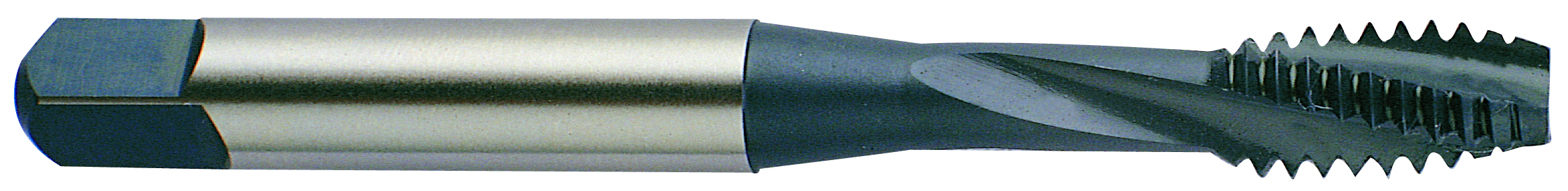

Picture of YG-1 B3705 3/4-10.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P P-HSS Steam Oxide

YG-1 B3705 3/4-10.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P P-HSS Steam Oxide

Part Number: YG-B3705

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1160601
Vendor: Sussex Tool and Supply
$82.29
YG-1 B3705 3/4"x10.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P P-HSS Steam Oxide H5/GH5 NC/UNC Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat P-HSS
Machine Side Connection Type Tap Collet
Cut Rating High Temp, Inconel, Titanium
Coating Steam Oxide
Overall Length 4.2500 107.95MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5900 14.99MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 10.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size 3/4"
Thread Limit H5/GH5
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 0.6461 16.41MM - 0.6720 17.07MM
Tap Square 0.4420
Tap Chamfer 2.0P-3.0P
