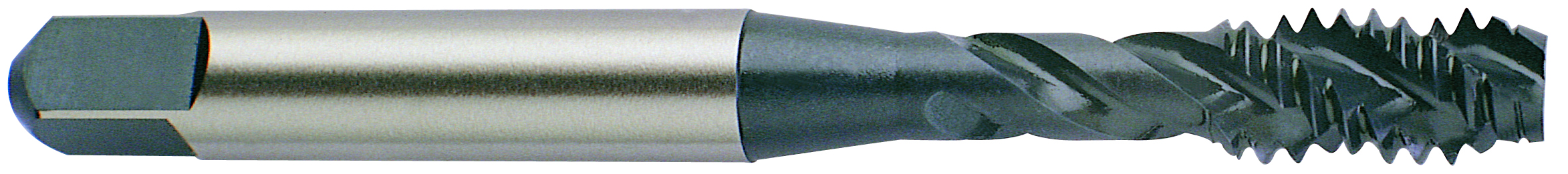

Picture of YG-1 B2944 1-1/2-6.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 TiN

YG-1 B2944 1-1/2-6.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 TiN

Part Number: YG-B2944

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1160565
Vendor: Sussex Tool and Supply
$487.30
Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.
Products specifications
Attribute name Attribute value
Tap Drill Range 1.3268 33.70MM - 1.3701 34.80MM
Dimension Standard ANSI/ANSI
Shank Or Pilot Diameter 1.2330 31.32MM
Thread Limit H4/GH4
Cutter Type Taping
Tap Square 0.9250
Length Type STANDARD
Performance Rating General Performance
Tap Style Cut Spiral Flute
Overall Length 6.3750 161.93MM
Machine Side (Toolpost) TAP0.925x1.233
Cutting Edge Definition which increase wear resistance and hot hardness., Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides
Type of Tool Tap
Machine Side (Toolpost) Connection Type Tap Collet
Flutes Or Inserts 4
Shipping State ILLINOIS
Family Group SS 28Rc Tap
Cutting Edge Material HSSE-V3
Tool Material Steel
Coating TIN
Coolant Thru Non Coolant
Tap Type Mod Bottom
Flute Direction Right
Thread Type NC/UNC
Made In USA No
Thread Size 1-1/2"
Thread Pitch 6.00TPI
Tap Chamfer 2.0P-3.0P
