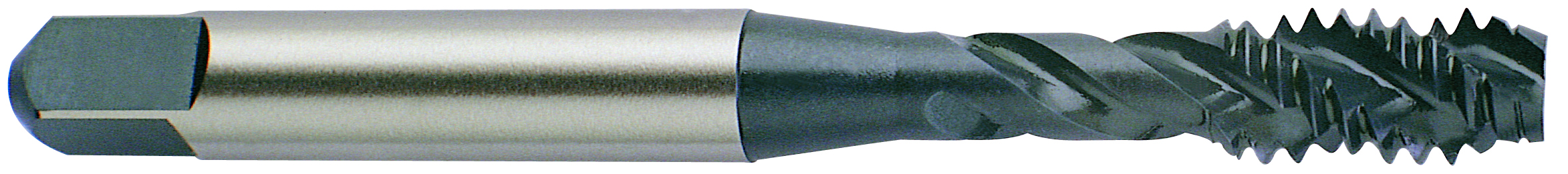

Picture of YG-1 B2824 1-1/8-7.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 TiN

YG-1 B2824 1-1/8-7.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 TiN

Part Number: YG-B2824

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1160562
Vendor: Sussex Tool and Supply
$215.21
YG-1 B2824 1-1/8"x7.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 TiN H4/GH4 NC/UNC Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-V3
Machine Side Connection Type Tap Collet
Cut Rating <30HRC Steel, Stainless Steel
Coating TIN
Overall Length 5.4370 138.10MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.8960 22.76MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 7.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size 1-1/8"
Thread Limit H4/GH4
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 0.9764 24.80MM - 1.0134 25.74MM
Tap Square 0.6720
Tap Chamfer 2.0P-3.0P
