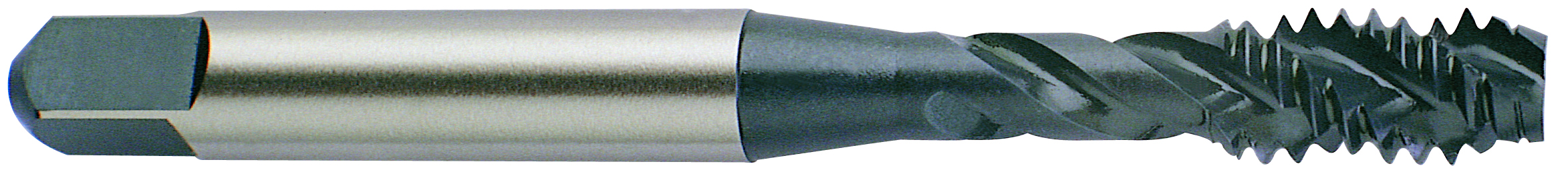

Picture of YG-1 B2445 5/16-18.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 TiN

YG-1 B2445 5/16-18.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 TiN

Part Number: YG-B2445
Looking for alternatives…
Find a drill for this tap 5/16" × 18.00TPI
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1160530
Vendor: Sussex Tool and Supply
$22.84

Description

YG-1 B2445 5/16"x18.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 TiN H5/GH5 NC/UNC Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 2.7200 69.09MM
Shank/Pilot Dia 0.3180 8.08MM
Flutes/Inserts 3
Thread Pitch 18.00TPI
Thread Size 5/16"
Tap Drill Range 0.2547 6.47MM - 0.2689 6.83MM
Tap Square 0.2380
Performance & Capacity
Cut Rating <30HRC Steel, Stainless Steel
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit H5/GH5
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-V3
Coating TIN
Standards & Identification
Dimension Standard ANSI/ANSI
