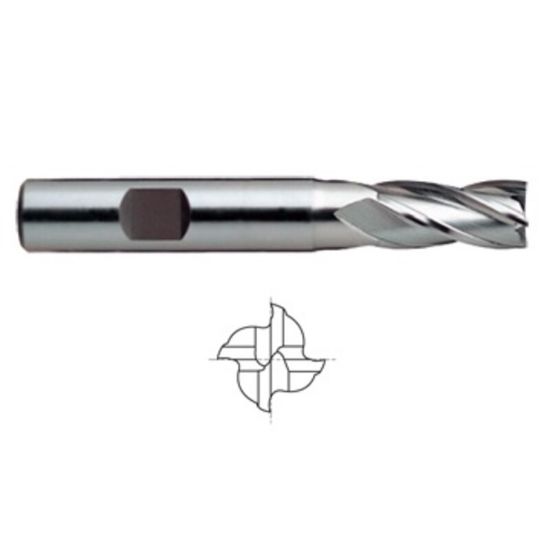

YG-1 7511 DIA 3/8 SH 0.3750 LOC 0.7500 OAL2.50 End Mill Standard Flute Standard Helix Powder Metal Uncoated Single End Square Sharp ASP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-07511
Delivery date: 3-5 days
$23.60
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#15, Material#17, Material#2
Additional Key Information 4 Standard Helix
Performance Rating High Performance
Sold by Pieces 1
Additional Key Information 1 End Mill
Additional Key Information 2 Sharp
Application Side Milling, Face Milling
Package Size 1
Additional Key Information 3 Standard Flute
Shipping State Illinois
Uncategorized
Made In USA No
Dimensional Specifications
Cutter Dia 0.3750 9.53MM - 3/8
Tool Material Powder Metal
Machine Side Connection Type Weldon
Inch/Metric Inch
Flutes/Inserts 4
Length Type Standard
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron
Shank/Pilot Dia 0.3750 9.53MM - 3/8
End Of Tool Shape Square
Cutter Style Powder Metal Finisher
Machine Side WELDON0.3750
Helix Angle 30°
Length Of Cut 0.7500 19.05MM
Single/Double End Single End
Overall Len 2.5000 63.50MM
Machine Side Connection Size 0.3750 9.53MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Powder Metal
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
