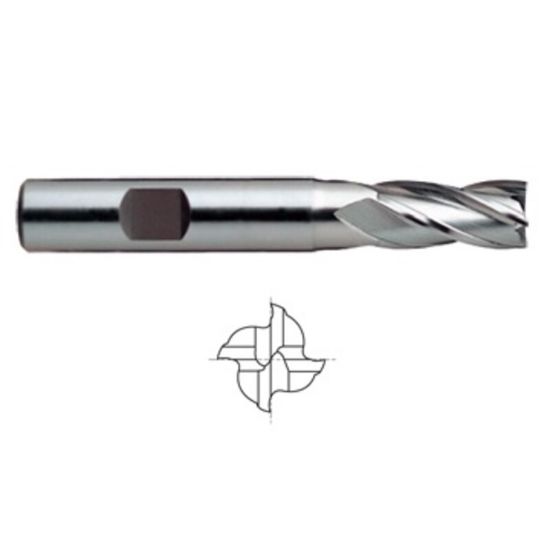

YG-1 7505 DIA 3/16 SH 0.3750 LOC 0.50 OAL2.3750 End Mill Standard Flute Standard Helix Powder Metal Uncoated Single End Square Sharp ASP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-07505
Delivery date: 3-5 days
$23.60
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#17, Material#2, Material#15
Additional Key Information 4 Standard Helix
Shipping State Illinois
Application Face Milling, Side Milling
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Performance Rating High Performance
Sold by Pieces 1
Additional Key Information 2 Sharp
Package Size 1
Uncategorized
Made In USA No
Dimensional Specifications
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Single/Double End Single End
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron
Overall Len 2.3750 60.33MM
End Of Tool Shape Square
Cutter Style Powder Metal Finisher
Machine Side WELDON0.3750
Length Of Cut 0.5000 12.70MM
Cutter Dia 0.1875 4.76MM - 3/16
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Inch/Metric Inch
Tool Material Powder Metal
Machine Side Connection Type Weldon
Helix Angle 30°
Flutes/Inserts 4
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Powder Metal
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
