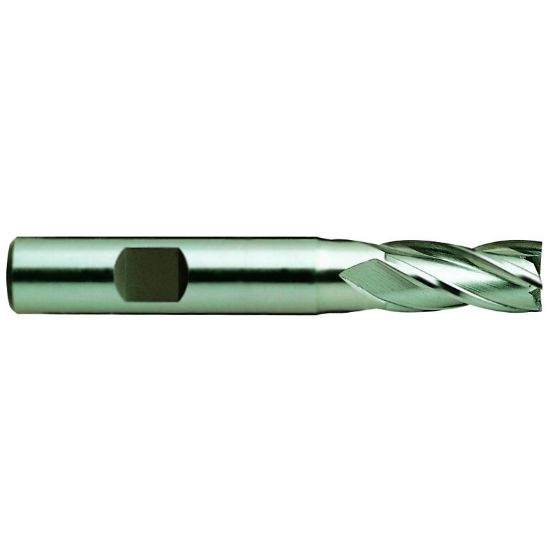

YG-1 7070 DIA 1/2 SH 0.3750 LOC 1.00 OAL2.6870 End Mill Standard Flute Standard Helix HSS Uncoated Single End Square Sharp GENERAL Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-07070
Delivery date: 3-5 days
$19.81
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Performance Rating General Performance
Application Face Milling, Side Milling
Package Size 1
Material # Material#15, Material#18, Material#2, Material#8
Sold by Pieces 1
Additional Key Information 3 Standard Flute
Additional Key Information 1 End Mill
Additional Key Information 2 Sharp
Additional Key Information 4 Standard Helix
Uncategorized
Made In USA No
Dimensional Specifications
Cutter Dia 0.5000 12.70MM - 1/2
Overall Len 2.6870 68.25MM
Shank/Pilot Dia 0.3750 9.53MM - 3/8
End Of Tool Shape Square
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Single/Double End Single End
Machine Side Connection Type Weldon
Length Of Cut 1.0000 25.40MM
Inch/Metric Inch
Cutter Style HSS Finisher
Machine Side WELDON0.3750
Helix Angle 30°
Tool Material High Speed Steel
Machine Side Connection Size 0.3750 9.53MM
Flutes/Inserts 4
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
