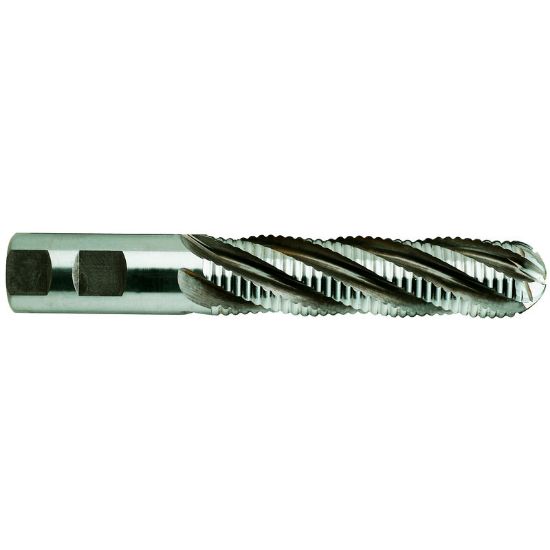

YG-1 68337CE DIA 5/8 SH 0.6250 LOC 1.6250 OAL3.7500 End Mill Roughing Flute Standard Helix Cobalt TiAlN Single End Ball NoseBall GENERAL Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-68337CE
Delivery date: 3-5 days
$111.29
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#18, Material#8, Material#15, Material#2
Application Profile Milling, Side Milling, Ball Milling, Copy Milling, Ball Slot Milling
Package Size 1
Sold by Pieces 1
Shipping State Illinois
Coating TiAlN
Additional Key Information 2 Ball Nose
Additional Key Information 3 Roughing Flute
Additional Key Information 4 Standard Helix
Performance Rating General Performance
Additional Key Information 1 End Mill
Uncategorized
Made In USA No
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Machine Side Connection Size 0.6250 15.88MM
Single/Double End Single End
Cutter Dia 0.6250 15.88MM - 5/8
Machine Side Connection Type Weldon
Helix Angle 30°
Machine Side WELDON0.6250
Overall Len 3.7500 95.25MM
Inch/Metric Inch
Shank/Pilot Dia 0.6250 15.88MM - 5/8
End Of Tool Shape Ball Nose
Flutes/Inserts 4
Length Of Cut 1.6250 41.28MM
Length Type Standard
Cutter Style Cobalt Ball Rougher
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Job Shop Yes
