  • YG-1 68321 DIA 1/2 SH 0.50 LOC 1.2500 OAL3.2500 End Mill Roughing Flute Standard Helix Cobalt Uncoated Single End Ball NoseBall GENERAL Purpose

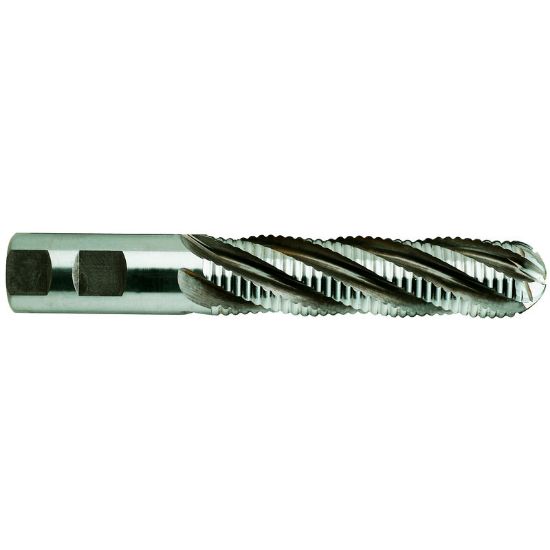

Picture of YG-1 68321 DIA 1/2 SH 0.50 LOC 1.2500 OAL3.2500 End Mill Roughing Flute Standard Helix Cobalt Uncoated Single End Ball NoseBall GENERAL Purpose

YG-1 68321 DIA 1/2 SH 0.50 LOC 1.2500 OAL3.2500 End Mill Roughing Flute Standard Helix Cobalt Uncoated Single End Ball NoseBall GENERAL Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-68321
Delivery date: 3-5 days
$69.02
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#18, Material#2, Material#8, Material#15
Application Profile Milling, Ball Milling, Copy Milling, Ball Slot Milling, Side Milling
Additional Key Information 4 Standard Helix
Shipping State Illinois
Sold by Pieces 1
Performance Rating General Performance
Additional Key Information 1 End Mill
Additional Key Information 2 Ball Nose
Additional Key Information 3 Roughing Flute
Package Size 1
Uncategorized
Made In USA No
Dimensional Specifications
Tool Material Cobalt
Machine Side Connection Size 0.5000 12.70MM
Overall Len 3.2500 82.55MM
Length Of Cut 1.2500 31.75MM
Single/Double End Single End
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard
Machine Side Connection Type Weldon
Helix Angle 30°
End Of Tool Shape Ball Nose
Inch/Metric Inch
Cutter Style Cobalt Ball Rougher
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side WELDON0.5000
Flutes/Inserts 4
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Job Shop Yes
