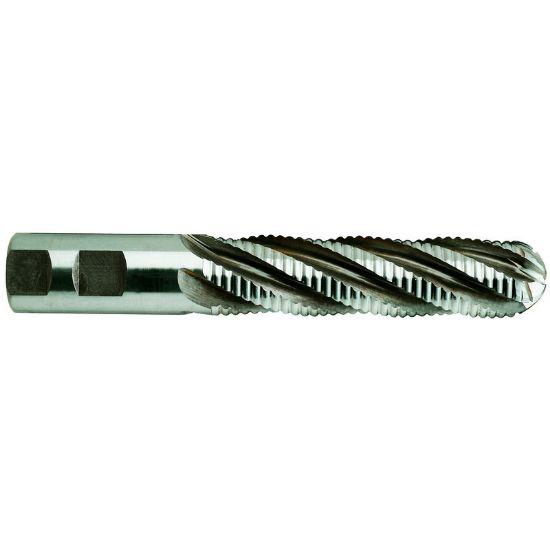

YG-1 68297CE DIA 1/4 SH 0.3750 LOC 0.6250 OAL2.4375 End Mill Roughing Flute Standard Helix Cobalt TiAlN Single End Ball NoseBall GENERAL Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-68297CE
Delivery date: 3-5 days
$64.75
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Milling, Copy Milling, Ball Slot Milling, Profile Milling, Side Milling
Coating TiAlN
Material # Material#15, Material#18, Material#2, Material#8
Performance Rating General Performance
Additional Key Information 2 Ball Nose
Additional Key Information 3 Roughing Flute
Package Size 1
Sold by Pieces 1
Additional Key Information 4 Standard Helix
Shipping State Illinois
Additional Key Information 1 End Mill
Uncategorized
Made In USA No
Dimensional Specifications
Overall Len 2.4375 61.91MM
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Inch/Metric Inch
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Length Of Cut 0.6250 15.88MM
Machine Side Connection Type Weldon
Helix Angle 30°
Tool Material Cobalt
Single/Double End Single End
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Machine Side WELDON0.3750
Cutter Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 3
End Of Tool Shape Ball Nose
Cutter Style Cobalt Ball Rougher
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Agricultural YES
Energy Yes
