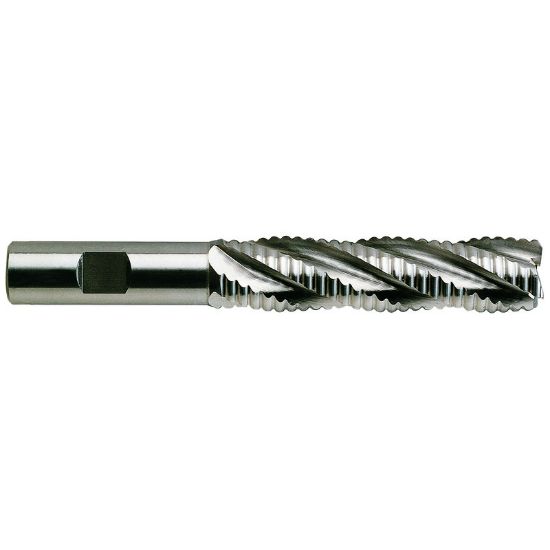

YG-1 62490CC DIA 2 SH 2.00 LOC 8.00 OAL11.7500 End Mill Cobalt TiCN Single End Square Sharp GENERAL Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-62490CC
Delivery date: 3-5 days
$955.15
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Shipping State Illinois
Additional Key Information 1 End Mill
Application Side Milling, Face Milling
Material # Material#18, Material#2, Material#8, Material#15
Sold by Pieces 1
Additional Key Information 2 Rougher
Coating TiCN
Package Size 1
Uncategorized
Made In USA No
Dimensional Specifications
Overall Len 11.7500 298.45MM
End Of Tool Shape Square
Helix Angle 30°
Machine Side WELDON2.0000
Length Type Long
Machine Side Connection Size 2.0000 50.80MM
Length Of Cut 8.0000 203.20MM
Cutter Style Cobalt Rougher
Cutter Dia 2.0000 50.80MM
Machine Side Connection Type Weldon
Flutes/Inserts 8
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Shank/Pilot Dia 2.0000 50.80MM - 2
Inch/Metric Metric
Single/Double End Single End
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Energy Yes
Agricultural YES
