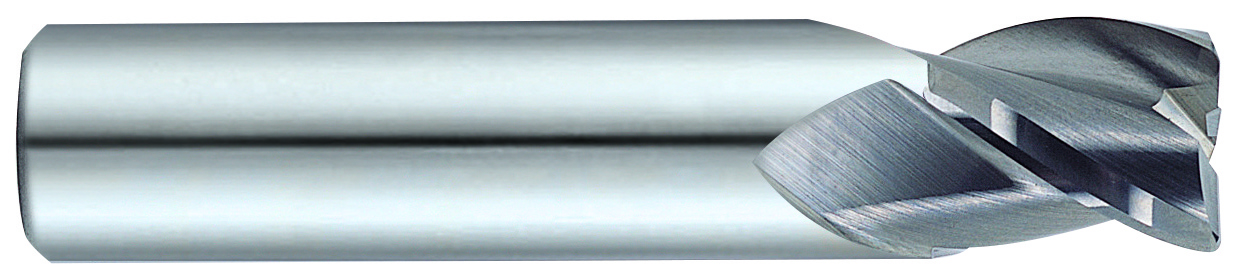

Picture of YG-1 57561TC Dia 5/32 SH 0.1875 LOC 0.3125 OAL2.00 End Mill Standard Flute Standard Helix Carbide TiCN Single End Corner Radius0.0080 0.20mm - 0.0124 0.31mm Carbide EndMillS

YG-1 57561TC Dia 5/32 SH 0.1875 LOC 0.3125 OAL2.00 End Mill Standard Flute Standard Helix Carbide TiCN Single End Corner Radius0.0080 0.20mm - 0.0124 0.31mm Carbide EndMillS

Part Number: YG-57561TC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1210243
Vendor: Sussex Tool and Supply
$25.68
YG-1 Standard Helix End Mill Carbide TiCN Corner Radius 0.0080 0.20MM - 0.0124 0.31MM Standard Flute Flutes 3 Single End CARBIDE ENDMILLS Carbide Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <25HRC Steel, Stainless Steel, Titanium, High Temp, Inconel
Coating TICN
Mach Side Connection Size 0.1875 4.76MM
Overall Length 2.0000 50.80MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 3
Tool Dia 0.1563 3.97MM - 5/32
Length Type Stub
Performance Rating General Performance
Length Of Cut 0.3125 7.94MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0080 0.20MM - 0.0124 0.31MM
Inch/Metric Inch
Helix Angle 35
Center Cutting Center Cutting
