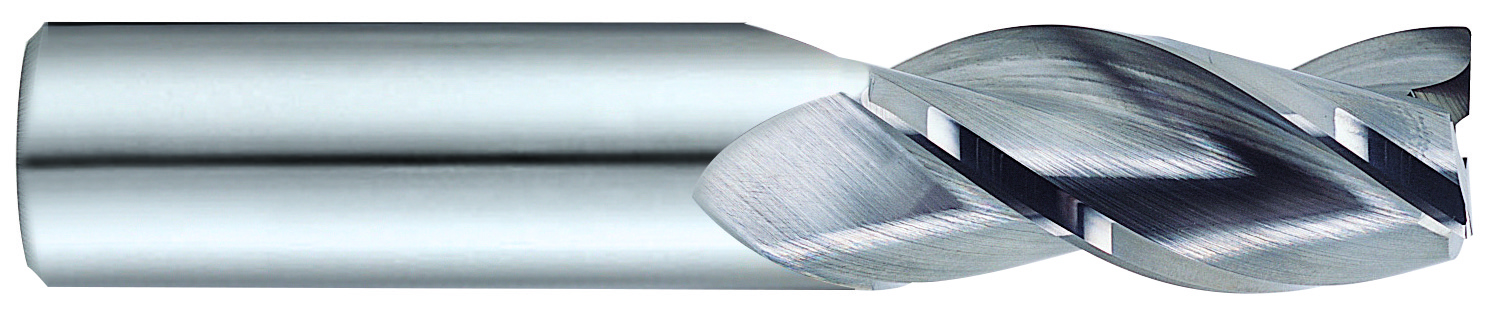

Picture of YG-1 56595 Dia 5/8 SH 0.6250 LOC 1.6250 OAL3.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0300 0.76mm - 0.0350 0.89mm Carbide EndMillS

YG-1 56595 Dia 5/8 SH 0.6250 LOC 1.6250 OAL3.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0300 0.76mm - 0.0350 0.89mm Carbide EndMillS

Part Number: YG-56595
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$206.54
SKU: 1210370

Description

YG-1 Standard Helix End Mill Carbide Uncoated Corner Radius 0.0300 0.76MM - 0.0350 0.89MM Standard Flute Flutes 3 Single End CARBIDE ENDMILLS Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.5000 88.90MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 3
Tool Dia 0.6250 15.88MM - 5/8
Length Of Cut 1.6250 41.28MM
Geometry & Angles
Corner Radius 0.0300 0.76MM - 0.0350 0.89MM
Helix Angle 35
Performance & Capacity
Cut Rating <25HRC Steel, Stainless Steel, Titanium, High Temp, Inconel
Performance Rating General Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
