  • YG-1 5297 DIA 1/4 SH 0.3750 LOC 1.2500 OAL3.0620 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp GENERAL Purpose

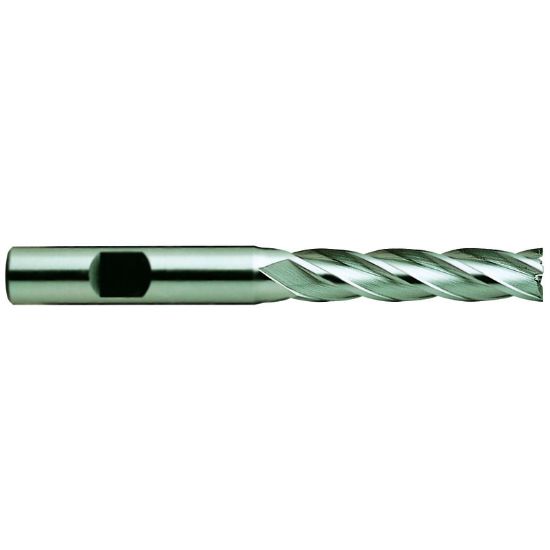

Picture of YG-1 5297 DIA 1/4 SH 0.3750 LOC 1.2500 OAL3.0620 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp GENERAL Purpose

YG-1 5297 DIA 1/4 SH 0.3750 LOC 1.2500 OAL3.0620 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp GENERAL Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-05297
Delivery date: 3-5 days
$22.28
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 4 Standard Helix
Material # Material#15, Material#8, Material#18, Material#2
Application Face Milling, Side Milling, Slot Milling
Package Size 1
Sold by Pieces 1
Additional Key Information 1 End Mill
Additional Key Information 2 Sharp
Performance Rating General Performance
Additional Key Information 3 Standard Flute
Shipping State Illinois
Uncategorized
Made In USA No
Dimensional Specifications
Cutter Dia 0.2500 6.35MM - 1/4 - E
Overall Len 3.0620 77.77MM
Flutes/Inserts 4
Length Type Long
Machine Side Connection Type Weldon
Cutter Style Cobalt Finisher
Inch/Metric Inch
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Single/Double End Single End
Machine Side WELDON0.3750
Helix Angle 30°
Shank/Pilot Dia 0.3750 9.53MM - 3/8
End Of Tool Shape Square
Length Of Cut 1.2500 31.75MM
Machine Side Connection Size 0.3750 9.53MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Job Shop Yes
