  • YG-1 52272CN DIA 3/16 SH 0.1875 LOC 0.2812 OAL2.00 End Mill Standard Flute Standard Helix Cobalt TiN Double End Square Sharp GENERAL Purpose

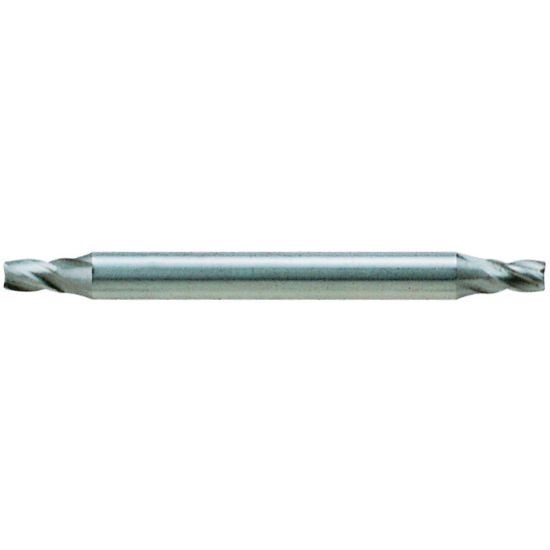

Picture of YG-1 52272CN DIA 3/16 SH 0.1875 LOC 0.2812 OAL2.00 End Mill Standard Flute Standard Helix Cobalt TiN Double End Square Sharp GENERAL Purpose

YG-1 52272CN DIA 3/16 SH 0.1875 LOC 0.2812 OAL2.00 End Mill Standard Flute Standard Helix Cobalt TiN Double End Square Sharp GENERAL Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-52272CN
Delivery date: 3-5 days
$24.11
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 4 Standard Helix
Material # Material#18, Material#2, Material#8, Material#15
Additional Key Information 3 Standard Flute
Application Face Milling, Side Milling
Coating TiN
Shipping State Illinois
Performance Rating General Performance
Additional Key Information 1 End Mill
Additional Key Information 2 Sharp
Sold by Pieces 1
Package Size 1
Uncategorized
Made In USA No
Dimensional Specifications
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Overall Len 2.0000 50.80MM
Flutes/Inserts 4
Cutter Style Cobalt Miniature
Tool Material Cobalt
Machine Side Connection Size 0.1875 4.76MM
Cutter Dia 0.1875 4.76MM - 3/16
Machine Side WELDON0.1875
Length Of Cut 0.2813 7.15MM
End Of Tool Shape Square
Inch/Metric Inch
Length Type Stub
Helix Angle 30°
Machine Side Connection Type Weldon
Single/Double End Double End
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Medical Yes
Job Shop Yes
Mold Yes
