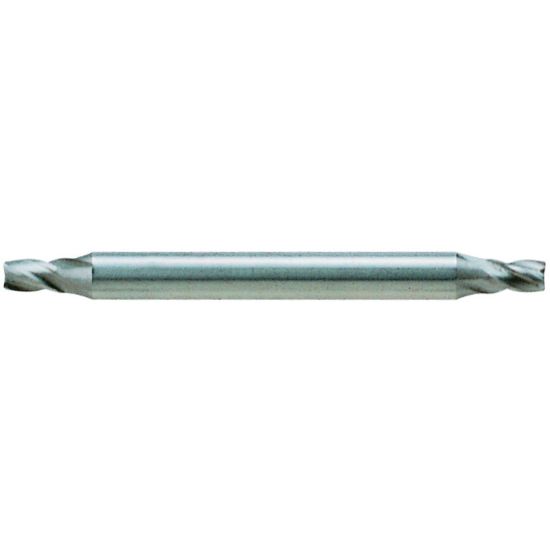

Picture of YG-1 52262CN DIA 7/64 SH 0.1875 LOC 0.1563 OAL2.00 End Mill Standard Flute Standard Helix Cobalt TiN Double End Square Sharp GENERAL Purpose

YG-1 52262CN DIA 7/64 SH 0.1875 LOC 0.1563 OAL2.00 End Mill Standard Flute Standard Helix Cobalt TiN Double End Square Sharp GENERAL Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-52262CN
Delivery date: 3-5 days
$24.11
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#18, Material#2, Material#8, Material#15
Additional Key Information 3 Standard Flute
Coating TiN
Additional Key Information 4 Standard Helix
Application Face Milling, Side Milling
Package Size 1
Shipping State Illinois
Performance Rating General Performance
Sold by Pieces 1
Additional Key Information 1 End Mill
Additional Key Information 2 Sharp
Uncategorized
Made In USA No
Dimensional Specifications
Length Of Cut 0.1563 3.97MM
Length Type Stub
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 4
Machine Side WELDON0.1875
Machine Side Connection Type Weldon
Inch/Metric Inch
Single/Double End Double End
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Machine Side Connection Size 0.1875 4.76MM
Overall Len 2.0000 50.80MM
Cutter Dia 0.1094 2.78MM - 7/64
End Of Tool Shape Square
Cutter Style Cobalt Miniature
Helix Angle 30°
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Medical Yes
Job Shop Yes
Mold Yes
