  • YG-1 49268CN DIA 5/32 SH 0.1875 LOC 0.2343 OAL2.00 End Mill Standard Flute Standard Helix Cobalt TiN Double End Square Sharp GENERAL Purpose

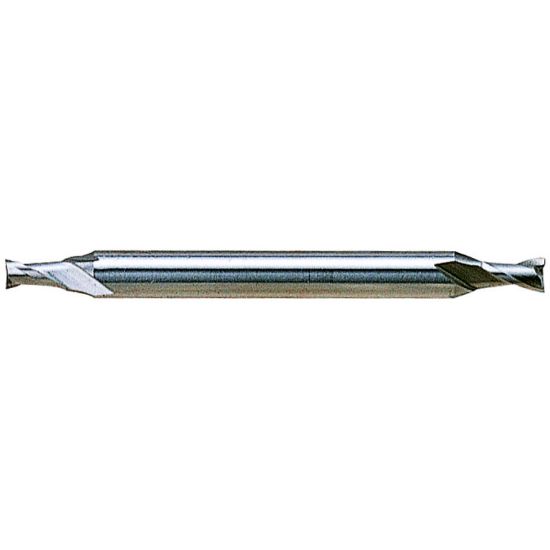

Picture of YG-1 49268CN DIA 5/32 SH 0.1875 LOC 0.2343 OAL2.00 End Mill Standard Flute Standard Helix Cobalt TiN Double End Square Sharp GENERAL Purpose

YG-1 49268CN DIA 5/32 SH 0.1875 LOC 0.2343 OAL2.00 End Mill Standard Flute Standard Helix Cobalt TiN Double End Square Sharp GENERAL Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-49268CN
Delivery date: 3-5 days
$24.11
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#18, Material#8, Material#15, Material#2
Application Face Milling, Side Milling
Package Size 1
Shipping State Illinois
Sold by Pieces 1
Additional Key Information 2 Sharp
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Coating TiN
Performance Rating General Performance
Additional Key Information 4 Standard Helix
Uncategorized
Made In USA No
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Machine Side Connection Size 0.1875 4.76MM
Overall Len 2.0000 50.80MM
Length Of Cut 0.2343 5.95MM
Machine Side Connection Type Weldon
Helix Angle 30°
Machine Side WELDON0.1875
Inch/Metric Inch
Single/Double End Double End
Length Type Stub
End Of Tool Shape Square
Cutter Style Cobalt Miniature
Cutter Dia 0.1563 3.97MM - 5/32
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Mold Yes
Medical Yes
