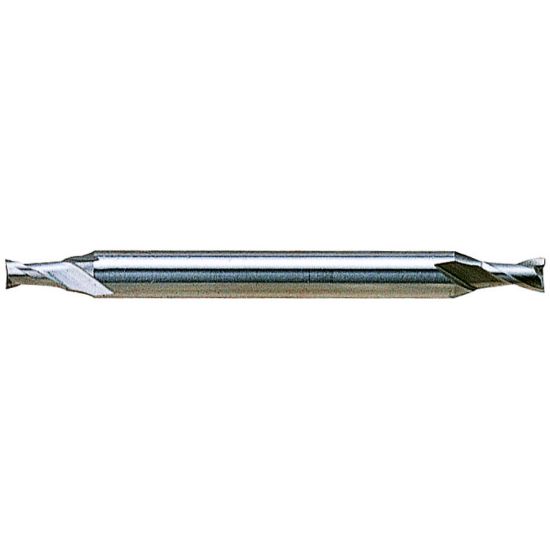

YG-1 49264CF DIA 1/8 SH 0.1875 LOC 0.1875 OAL2.00 End Mill Standard Flute Standard Helix Cobalt TiAlN Double End Square Sharp GENERAL Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-49264CF
Delivery date: 3-5 days
$25.57
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Coating TiAlN
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Application Side Milling, Face Milling
Additional Key Information 4 Standard Helix
Shipping State Illinois
Sold by Pieces 1
Additional Key Information 2 Sharp
Material # Material#15, Material#18, Material#2, Material#8
Performance Rating General Performance
Uncategorized
Made In USA No
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Flutes/Inserts 2
Length Of Cut 0.1875 4.76MM
Machine Side Connection Size 0.1875 4.76MM
Length Type Stub
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Overall Len 2.0000 50.80MM
End Of Tool Shape Square
Cutter Style Cobalt Miniature
Cutter Dia 0.1250 3.18MM - 1/8
Machine Side Connection Type Weldon
Helix Angle 30°
Single/Double End Double End
Machine Side WELDON0.1875
Inch/Metric Inch
Tool Material Cobalt
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Job Shop Yes
Mold Yes
Medical Yes
