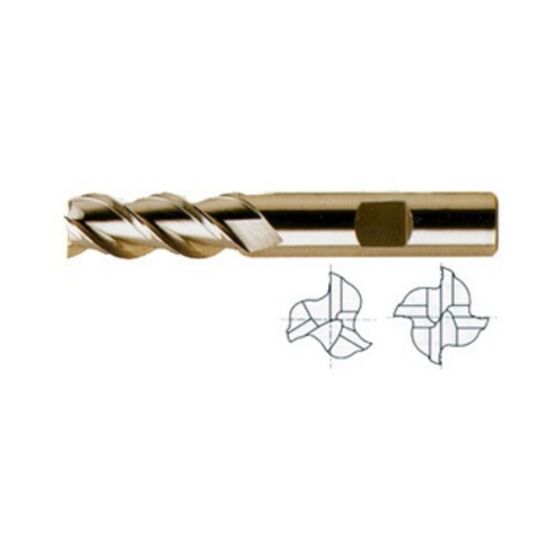

Picture of YG-1 34515 Dia 1/2 SH 0.50 LOC 1.2500 OAL3.2500 End Mill Standard Flute High Helix Powder Metal Uncoated Single End Square Sharp ASP

YG-1 34515 Dia 1/2 SH 0.50 LOC 1.2500 OAL3.2500 End Mill Standard Flute High Helix Powder Metal Uncoated Single End Square Sharp ASP

Part Number: YG-34515

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1213658
Vendor: Sussex Tool and Supply
$34.42
The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.
Products specifications
Attribute name Attribute value
Shank Or Pilot Diameter 0.5000 12.70MM - 1/2
Cutter Type Solid End Mill
Length Type STANDARD
Performance Rating High Performance
Center Cutting Center Cutting
Overall Length 3.2500 82.55MM
Machine Side (Toolpost) WELDON0.5000
Cutting Edge Definition The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, it is still wear-resistant and has a high hot hardness., but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however
Length Of Cut 1.2500 31.75MM
End Of Tool Shape Square
Cutter Style Powder Metal Finisher
Inch Or Metric Inch
Machine Side (Toolpost) Connection Type Weldon
Flutes Or Inserts 3
Shipping State ILLINOIS
Family Group ASP
Single Or Double End Single End
Cutting Edge Material Powder Metal
Tool Material Powder Metal
Mach Side Connection Size 0.5000 12.70MM - 1/2
Tool Diameter 0.5000 12.70MM - 1/2
Coolant Thru Non Coolant
Helix Angle 45°
Made In USA No
