  • YG-1 3297 DIA 1/4 SH 0.3750 LOC 0.6250 OAL3.0620 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp GENERAL Purpose

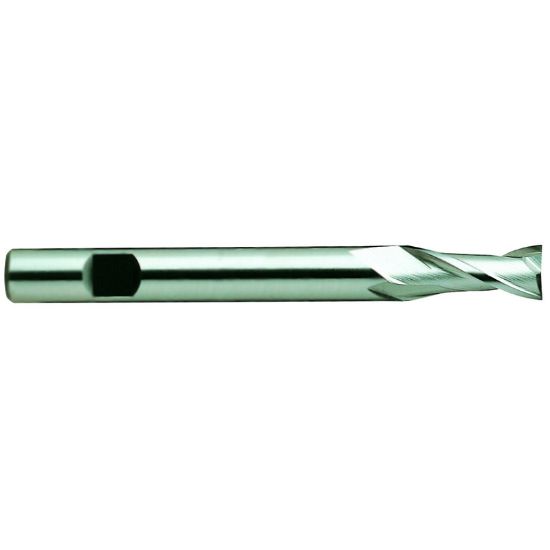

Picture of YG-1 3297 DIA 1/4 SH 0.3750 LOC 0.6250 OAL3.0620 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp GENERAL Purpose

YG-1 3297 DIA 1/4 SH 0.3750 LOC 0.6250 OAL3.0620 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp GENERAL Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-03297
Delivery date: 3-5 days
$22.28
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling, Slot Milling
Package Size 1
Additional Key Information 1 End Mill
Additional Key Information 2 Sharp
Shipping State Illinois
Material # Material#18, Material#2, Material#8, Material#15
Additional Key Information 3 Standard Flute
Sold by Pieces 1
Performance Rating General Performance
Additional Key Information 4 Standard Helix
Uncategorized
Made In USA No
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Single/Double End Single End
Machine Side WELDON0.3750
Helix Angle 30°
Overall Len 3.0620 77.77MM
Machine Side Connection Type Weldon
Cutter Style Cobalt Finisher
Length Type Extended
Inch/Metric Inch
Cutter Dia 0.2500 6.35MM - 1/4 - E
Shank/Pilot Dia 0.3750 9.53MM - 3/8
End Of Tool Shape Square
Machine Side Connection Size 0.3750 9.53MM
Flutes/Inserts 2
Length Of Cut 0.6250 15.88MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Job Shop Yes
