  • YG-1 3293 DIA 3/16 SH 0.3750 LOC 0.50 OAL2.6870 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp GENERAL Purpose

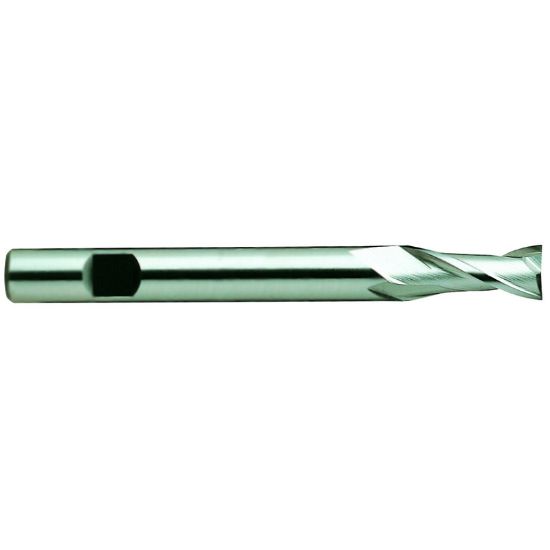

Picture of YG-1 3293 DIA 3/16 SH 0.3750 LOC 0.50 OAL2.6870 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp GENERAL Purpose

YG-1 3293 DIA 3/16 SH 0.3750 LOC 0.50 OAL2.6870 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp GENERAL Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-03293
Delivery date: 3-5 days
$22.28
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#15, Material#18, Material#2, Material#8
Sold by Pieces 1
Additional Key Information 4 Standard Helix
Performance Rating General Performance
Additional Key Information 1 End Mill
Additional Key Information 2 Sharp
Additional Key Information 3 Standard Flute
Application Side Milling, Face Milling, Slot Milling
Package Size 1
Shipping State Illinois
Uncategorized
Made In USA No
Dimensional Specifications
Machine Side Connection Type Weldon
Cutter Style Cobalt Finisher
Length Type Extended
Machine Side Connection Size 0.3750 9.53MM
Cutter Dia 0.1875 4.76MM - 3/16
Shank/Pilot Dia 0.3750 9.53MM - 3/8
End Of Tool Shape Square
Inch/Metric Inch
Machine Side WELDON0.3750
Length Of Cut 0.5000 12.70MM
Helix Angle 30°
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Flutes/Inserts 2
Tool Material Cobalt
Single/Double End Single End
Overall Len 2.6870 68.25MM
Cutting & Machining Properties
Center Cutting No
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
