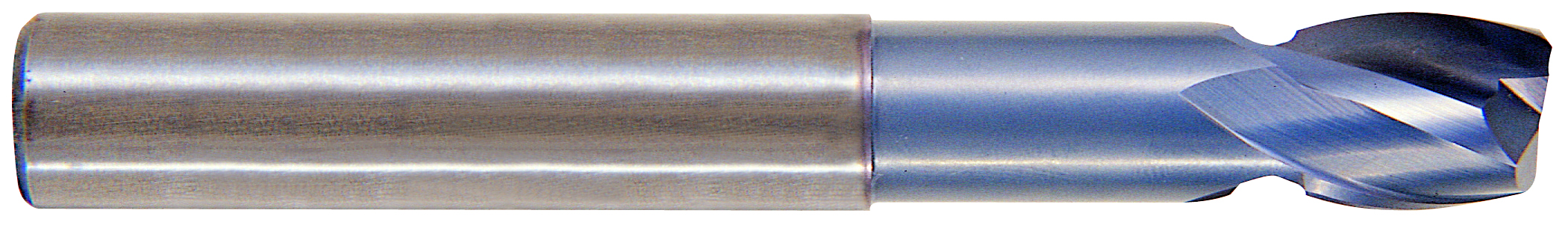

Picture of YG-1 24579TC Dia 5/16 SH 0.3125 LOC 0.3750 OAL2.7500 End Mill Standard Flute Standard Helix Carbide TiCN Single End Square Sharp Alu-Power End Mill

YG-1 24579TC Dia 5/16 SH 0.3125 LOC 0.3750 OAL2.7500 End Mill Standard Flute Standard Helix Carbide TiCN Single End Square Sharp Alu-Power End Mill

Part Number: YG-24579TC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1216355
Vendor: Sussex Tool and Supply
$47.61
YG-1 Standard Helix End Mill Carbide TiCN Square Sharp Standard Flute Flutes 2 Single End Alu-Power End Mill Carbide Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Coating TICN
Mach Side Connection Size 0.3125 7.94MM
Overall Length 2.7500 69.85MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3125 7.93MM - 5/16
Flutes/Inserts 2
Tool Dia 0.3125 7.94MM - 5/16
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 0.3750 9.53MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 30
Center Cutting Center Cutting
Neck Length 1.1250 28.58MM
