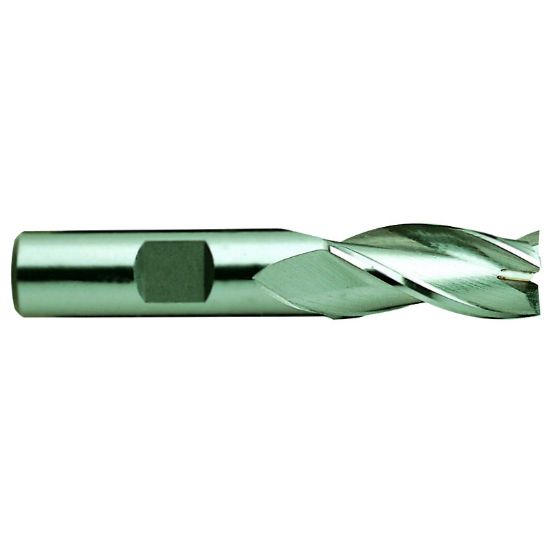

YG-1 23265CC DIA 1/8 SH 0.2500 LOC 0.3125 OAL1.3430 End Mill Standard Flute Standard Helix Cobalt TiCN Single End Square Sharp GENERAL Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-23265CC
Delivery date: 3-5 days
$20.24
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 4 Standard Helix
Material # Material#18, Material#2, Material#8, Material#15
Additional Key Information 3 Standard Flute
Application Face Milling, Side Milling
Performance Rating General Performance
Additional Key Information 1 End Mill
Additional Key Information 2 Sharp
Coating TiCN
Package Size 1
Sold by Pieces 1
Shipping State Illinois
Uncategorized
Made In USA No
Dimensional Specifications
Overall Len 1.3430 34.11MM
Flutes/Inserts 3
Tool Material Cobalt
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Single/Double End Single End
Machine Side Connection Size 0.2500 6.35MM
Length Of Cut 0.3125 7.94MM
End Of Tool Shape Square
Cutter Style Cobalt Throw Away Finishers
Cutter Dia 0.1250 3.18MM - 1/8
Helix Angle 30°
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Length Type Long
Machine Side Connection Type Weldon
Inch/Metric Inch
Machine Side WELDON0.2500
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Center Cutting No
Industry-Specific Applications
Job Shop Yes
