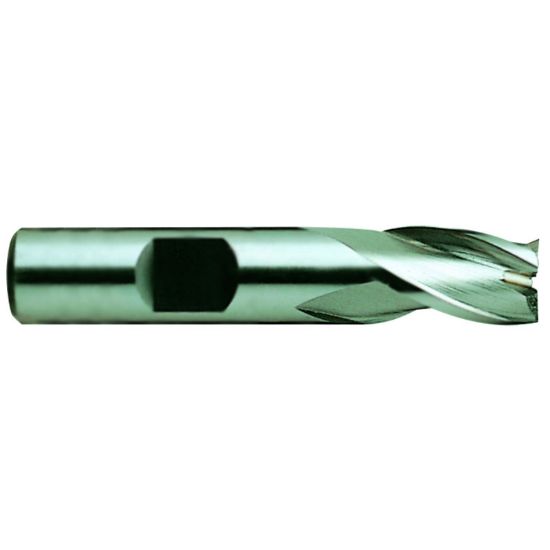

YG-1 22277CC DIA 7/32 SH 0.2500 LOC 0.3125 OAL1.4060 End Mill Standard Flute Standard Helix Cobalt TiCN Single End Square Sharp GENERAL Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-22277CC
Delivery date: 3-5 days
$18.96
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Sold by Pieces 1
Additional Key Information 1 End Mill
Additional Key Information 2 Sharp
Application Side Milling, Face Milling
Coating TiCN
Package Size 1
Performance Rating General Performance
Additional Key Information 4 Standard Helix
Material # Material#15, Material#18, Material#2, Material#8
Shipping State Illinois
Additional Key Information 3 Standard Flute
Uncategorized
Made In USA No
Dimensional Specifications
Helix Angle 30°
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Dia 0.2188 5.56MM - 7/32
Tool Material Cobalt
Single/Double End Single End
Machine Side Connection Size 0.2500 6.35MM
End Of Tool Shape Square
Cutter Style Cobalt Throw Away Finishers
Overall Len 1.4060 35.71MM
Machine Side WELDON0.2500
Flutes/Inserts 3
Machine Side Connection Type Weldon
Length Of Cut 0.3125 7.94MM
Inch/Metric Inch
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Length Type Stub
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Job Shop Yes
