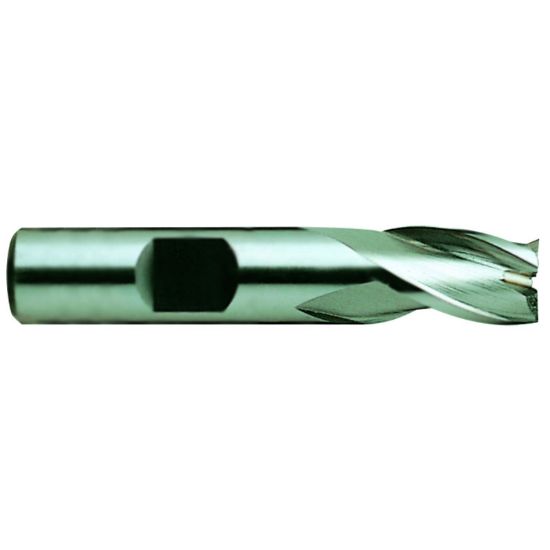

YG-1 22273CF DIA 3/16 SH 0.2500 LOC 0.2812 OAL1.3430 End Mill Standard Flute Standard Helix Cobalt TiAlN Single End Square Sharp GENERAL Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-22273CF
Delivery date: 3-5 days
$18.96
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#15, Material#2, Material#18, Material#8
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Coating TiAlN
Sold by Pieces 1
Additional Key Information 2 Sharp
Application Side Milling, Face Milling
Package Size 1
Shipping State Illinois
Additional Key Information 4 Standard Helix
Performance Rating General Performance
Uncategorized
Made In USA No
Dimensional Specifications
Cutter Dia 0.1875 4.76MM - 3/16
Machine Side Connection Size 0.2500 6.35MM
Cutter Style Cobalt Throw Away Finishers
Inch/Metric Inch
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Length Type Stub
Machine Side WELDON0.2500
Machine Side Connection Type Weldon
Helix Angle 30°
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Single/Double End Single End
Overall Len 1.3430 34.11MM
Flutes/Inserts 3
Length Of Cut 0.2813 7.15MM
End Of Tool Shape Square
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
