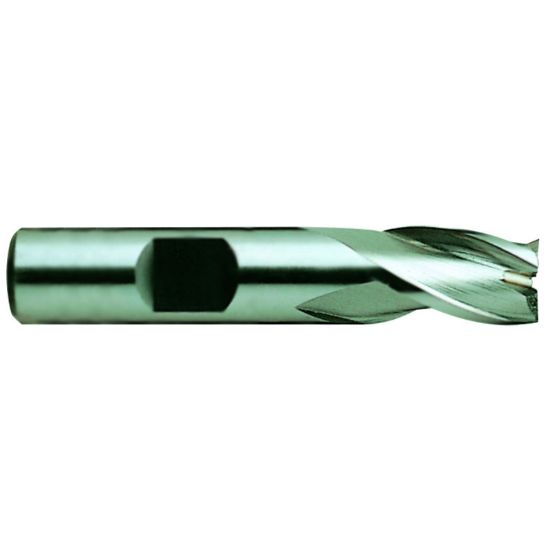

YG-1 22269CF DIA 5/32 SH 0.2500 LOC 0.2500 OAL1.2810 End Mill Standard Flute Standard Helix Cobalt TiAlN Single End Square Sharp GENERAL Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-22269CF
Delivery date: 3-5 days
$18.96
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#8, Material#15, Material#18, Material#2
Application Face Milling, Side Milling
Package Size 1
Coating TiAlN
Shipping State Illinois
Sold by Pieces 1
Additional Key Information 1 End Mill
Additional Key Information 2 Sharp
Additional Key Information 3 Standard Flute
Performance Rating General Performance
Additional Key Information 4 Standard Helix
Uncategorized
Made In USA No
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Single/Double End Single End
Overall Len 1.2810 32.54MM
Helix Angle 30°
Machine Side WELDON0.2500
Machine Side Connection Type Weldon
Machine Side Connection Size 0.2500 6.35MM
Cutter Style Cobalt Throw Away Finishers
Inch/Metric Inch
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Length Type Stub
Flutes/Inserts 3
Length Of Cut 0.2500 6.35MM
End Of Tool Shape Square
Cutter Dia 0.1563 3.97MM - 5/32
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
