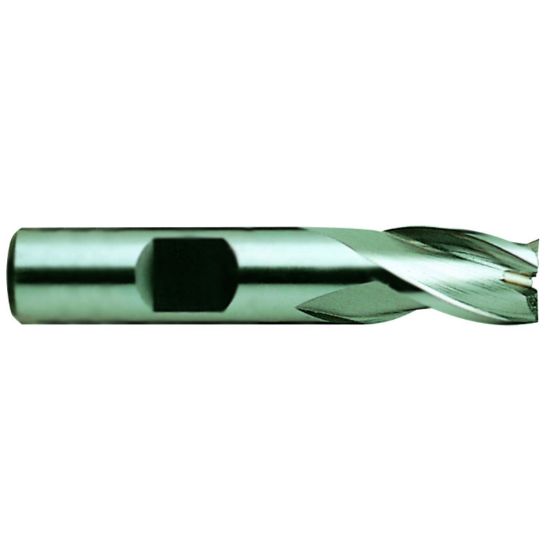

YG-1 22269CE DIA 5/32 SH 0.2500 LOC 0.2500 OAL1.2810 End Mill Standard Flute Standard Helix Cobalt TiAlN Single End Square Sharp GENERAL Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-22269CE
Delivery date: 3-5 days
$20.65
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:

Products specifications
Attribute name Attribute value
General Product Information
Coating TiAlN
Shipping State Illinois
Application Face Milling, Side Milling
Package Size 1
Performance Rating General Performance
Material # Material#18, Material#2, Material#8, Material#15
Additional Key Information 3 Standard Flute
Sold by Pieces 1
Additional Key Information 1 End Mill
Additional Key Information 2 Sharp
Additional Key Information 4 Standard Helix
Uncategorized
Made In USA No
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Single/Double End Single End
Machine Side Connection Size 0.2500 6.35MM
End Of Tool Shape Square
Cutter Style Cobalt Throw Away Finishers
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Machine Side Connection Type Weldon
Inch/Metric Inch
Machine Side WELDON0.2500
Flutes/Inserts 3
Length Of Cut 0.2500 6.35MM
Overall Len 1.2810 32.54MM
Length Type Stub
Helix Angle 30°
Cutter Dia 0.1563 3.97MM - 5/32
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Job Shop Yes
