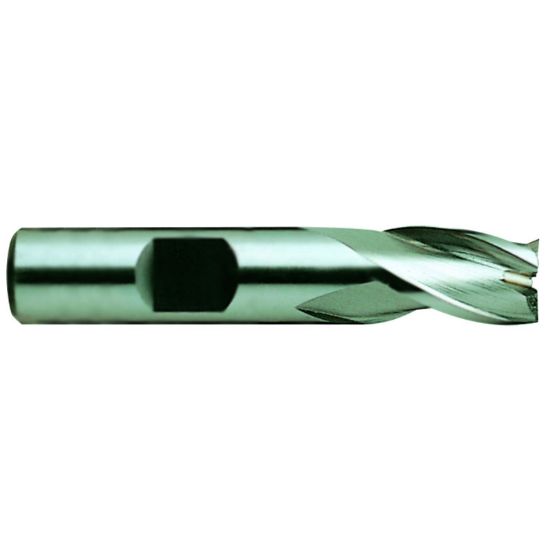

YG-1 22261CF DIA 3/32 SH 0.2500 LOC 0.1563 OAL1.0160 End Mill Standard Flute Standard Helix Cobalt TiAlN Single End Square Sharp GENERAL Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-22261CF
Delivery date: 3-5 days
$18.96
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 1 End Mill
Additional Key Information 2 Sharp
Additional Key Information 3 Standard Flute
Application Side Milling, Face Milling
Performance Rating General Performance
Package Size 1
Material # Material#15, Material#18, Material#2, Material#8
Sold by Pieces 1
Additional Key Information 4 Standard Helix
Coating TiAlN
Shipping State Illinois
Uncategorized
Made In USA No
Dimensional Specifications
Overall Len 1.0160 25.81MM
Length Of Cut 0.1563 3.97MM
Length Type Stub
Helix Angle 30°
Machine Side Connection Size 0.2500 6.35MM
End Of Tool Shape Square
Cutter Style Cobalt Throw Away Finishers
Inch/Metric Inch
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Weldon
Flutes/Inserts 3
Cutter Dia 0.0938 2.38MM - 3/32
Machine Side WELDON0.2500
Tool Material Cobalt
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Single/Double End Single End
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Center Cutting No
Industry-Specific Applications
Job Shop Yes
