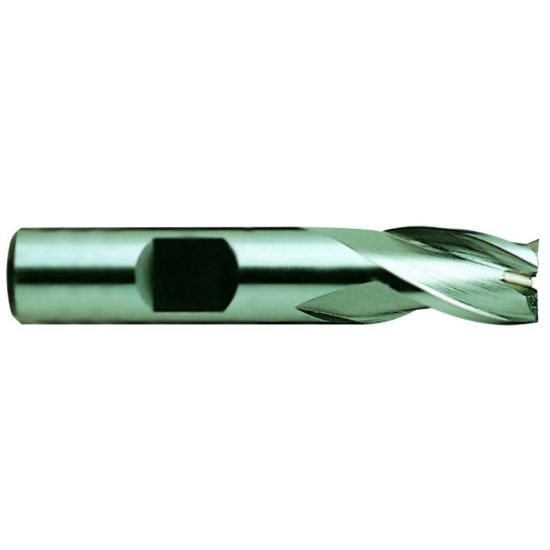

YG-1 22257CF DIA 1/16 SH 0.2500 LOC 0.0937 OAL0.9687 End Mill Standard Flute Standard Helix Cobalt TiAlN Single End Square Sharp GENERAL Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-22257CF
Delivery date: 3-5 days
$18.96
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 4 Standard Helix
Shipping State Illinois
Material # Material#18, Material#2, Material#8, Material#15
Application Face Milling, Side Milling
Coating TiAlN
Performance Rating General Performance
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Sold by Pieces 1
Additional Key Information 2 Sharp
Package Size 1
Uncategorized
Made In USA No
Dimensional Specifications
Cutter Dia 0.0625 1.59MM - 1/16
Length Of Cut 0.0938 2.38MM
Flutes/Inserts 3
End Of Tool Shape Square
Tool Material Cobalt
Single/Double End Single End
Machine Side WELDON0.2500
Machine Side Connection Size 0.2500 6.35MM
Cutter Style Cobalt Throw Away Finishers
Inch/Metric Inch
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Overall Len 0.9687 24.60MM
Length Type Stub
Machine Side Connection Type Weldon
Helix Angle 30°
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
