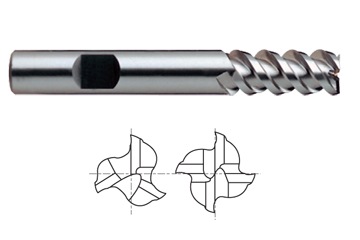

Picture of YG-1 20524 Dia 3/4 Sh 0.7500 Loc 1.6250 Oal3.8750 End Mill Standard Flute High Helix Powder Metal Uncoated Single End Square Sharp Asp

YG-1 20524 Dia 3/4 Sh 0.7500 Loc 1.6250 Oal3.8750 End Mill Standard Flute High Helix Powder Metal Uncoated Single End Square Sharp Asp

Part Number: YG-20524

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1002103
Vendor: Sussex Tool and Supply
$116.87

YG-1 end mill, powder metal, uncoated, square, sharp, standard flute. Weldon connection, 3/4 inch diameter, 0.7500 shank, 1.6250 loc, 3.8750 oal. Made in USA: No. Shipping state: ILLINOIS.

Key Details

Materials & Finish

  • Tool Material: Powder Metal

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Weldon
  • Machine Side (Toolpost): WELDON0.7500

Grades & Coatings

  • Alternate Description: YG-1 High Helix End Mill Powder Metal Uncoated Square Sharp Standard Flute Flutes 3 Single End ASP

Other Details

  • Brand: YG-1
  • Shipping State: ILLINOIS
  • Made In Usa: No

Technical Overview

What It Does

Cuts material with high helix design. Performs standard flute operations. Suitable for square sharp end milling tasks.

Composition

Powder metal, uncoated, single end square sharp flutes.

Typical Uses

End milling in machine toolpost with Weldon connection. Used in standard flute operations. Applied in 3/4 dia, 0.7500 sh, 1.6250 loc, 3.8750 oal setups.

Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Cutter Type Solid End Mill
Made In USA No
Cutting Edge Definition The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.
Cutting Edge Material Powder Metal
Tool Material Powder Metal
Machine Side (Toolpost) WELDON0.7500
Machine Side (Toolpost) Connection Type Weldon
Overall Length 3.8750 98.43MM
Shank Or Pilot Diameter 0.7500 19.05MM - 3/4
Family Group ASP
Coolant Thru Non Coolant
Mach Side Connection Size 0.7500 19.05MM - 3/4
Tool Diameter 0.7500 19.05MM - 3/4
Flutes Or Inserts 3
Length Type Standard
Performance Rating High Performance
Length Of Cut 1.6250 41.28MM
End Of Tool Shape Square
Cutter Style Powder Metal Finisher
Single Or Double End Single End
Inch Or Metric Inch
Helix Angle 60°
Center Cutting Center Cutting
