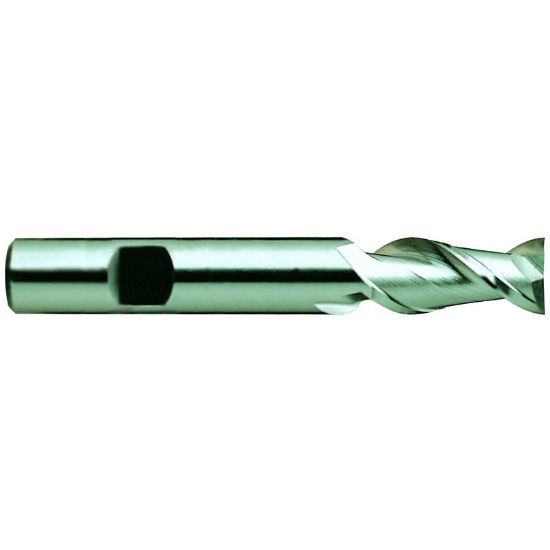

YG-1 17071 DIA 1/2 SH 0.50 LOC 1.2500 OAL3.2500 End Mill Standard Flute Standard Helix HSS Uncoated Single End Square Sharp GENERAL Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-17071
Delivery date: 3-5 days
$24.21
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#42, Material#20, Material#25
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Application Face Milling, Side Milling
Package Size 1
Shipping State Illinois
Performance Rating General Performance
Additional Key Information 4 Standard Helix
Sold by Pieces 1
Additional Key Information 2 Sharp
Uncategorized
Made In USA No
Dimensional Specifications
Cut Rating Aluminum, Graphite, Plastic
Inch/Metric Inch
Length Of Cut 1.2500 31.75MM
Machine Side Connection Size 0.5000 12.70MM
Overall Len 3.2500 82.55MM
Cutter Style HSS Finisher
Single/Double End Single End
Cutter Dia 0.5000 12.70MM - 1/2
Tool Material High Speed Steel
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard
End Of Tool Shape Square
Machine Side WELDON0.5000
Flutes/Inserts 2
Machine Side Connection Type Weldon
Helix Angle 42°
Cutting & Machining Properties
Center Cutting No
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
