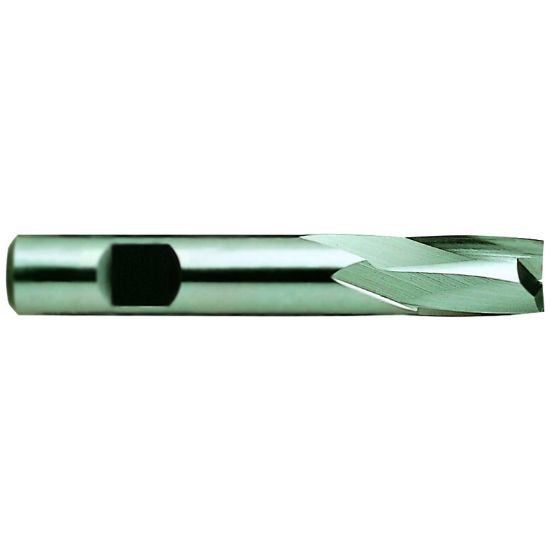

YG-1 14321CC DIA 1/2 SH 0.50 LOC 1.00 OAL3.00 End Mill Cobalt TiCN Single End Square Sharp GENERAL Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-14321CC
Delivery date: 3-5 days
$44.77
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Application Key Way CuttIng
Material # Material#18, Material#2, Material#8, Material#15
Additional Key Information 2 Keyway
Performance Rating General Performance
Sold by Pieces 1
Additional Key Information 1 End Mill
Coating TiCN
Package Size 1
Shipping State Illinois
Uncategorized
Made In USA No
Dimensional Specifications
Machine Side WELDON0.5000
Flutes/Inserts 2
Length Type Standard
Cutter Style Cobalt Keyway
End Of Tool Shape Square
Overall Len 3.0000 76.20MM
Helix Angle 30°
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Machine Side Connection Size 0.5000 12.70MM
Single/Double End Single End
Machine Side Connection Type Weldon
Length Of Cut 1.0000 25.40MM
Inch/Metric Inch
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Job Shop Yes
